Some cars in the United States have a hidden helper underneath. It’s called the front rear differential lock system. This system gives both wheels on a rear axle the power to turn together.
That helps your car stay steady on rough or slippery roads. Imagine driving up a steep hill. Suddenly, the differential lock stops working. Your wheels spin, but the car doesn’t move. That’s a front rear differential lock system malfunction—and it’s more common than you think.
When this system fails, your vehicle can lose traction fast. You might feel stuck or notice odd handling. But don’t worry. You can fix this problem with a little knowledge and the right steps.
In this guide, you’ll learn what this system does and why it matters. We’ll also explore what causes the malfunction. Whether you’re a car enthusiast or just curious, you’ll find helpful answers here.
Understanding Front And Rear Differential Lock System Issues
A malfunction in the front rear differential lock system can create serious driving challenges. This system helps both wheels on an axle move at the same speed, which improves traction on uneven or slippery terrain. When it fails, your vehicle may struggle during turns, produce unusual noises, or feel unstable, especially when climbing hills or driving off-road.
These symptoms often point to issues in the rear diff, such as worn components or electrical faults. To catch problems early, always pay attention during a test drive. Listen for grinding, slipping, or delayed wheel engagement.
Also, check your tire pressure regularly, as uneven pressure can confuse the system and impact how the differential performs. Routine maintenance and quick diagnostics can prevent major issues and keep your ride safe and smooth.
What Is A Differential Lock System?
A differential lock system, often called a diff lock, is a mechanical or electronic feature that forces both wheels on the same axle, typically the rear wheels, to rotate at the same speed. In standard driving, your vehicle’s differential allows each wheel to turn at different speeds, especially during turns.
This flexibility is great for smooth roads but becomes a problem in off-road or low-traction conditions like mud, snow, or sand. When one wheel slips, the diff lock steps in. It locks the axle, sending equal power to both wheels. This helps the vehicle maintain movement even if one wheel loses grip.
It’s especially useful when climbing steep trails or crossing uneven terrain. Without it, a single spinning wheel can leave you stuck. The system works alongside other parts, like the brake pedal, which may be used to modulate traction and control during locked driving.
Whether you’re navigating rocky paths or driving through a snowy street in the United States, the differential lock ensures your rear wheels work together, providing better balance, stability, and control.
Key Features and Importance
- Prevents wheel slip – Helps keep the car moving in tough conditions
- Enhances traction – Sends equal power to both rear wheels
- Useful off-road – Boosts control on rough or loose terrain
-
Works with brake pedal – Improves handling in tight spots
What Happens When A Rear Differential Locks Up?
When a rear differential locks up, it means the internal gears can no longer rotate freely or at different speeds as they should. The rear wheels, which normally move independently during turns, become rigidly connected. This causes major strain on the drivetrain, tires, and suspension, especially when the vehicle tries to turn.
Instead of allowing the wheels to adjust naturally during movement, a locked-up differential forces them to rotate at the same rate all the time. This can make steering feel stiff or jerky. In severe cases, the vehicle may shudder, drag, or even stall while turning. You might hear grinding noises or feel the brake pedal react oddly.
If you’ve experienced a similar issue—like difficulty turning or strange tire wear—it could point to a rear diff problem. Ignoring it could lead to serious damage or unsafe driving conditions.
Components Of A Differential Lock System
A differential lock system is a critical feature in many off-road and utility vehicles, including your average truck. It manages how torque is distributed between wheels on the same axle, helping both rotate at equal speeds when needed.
This is especially useful when one wheel is on a slippery surface while the other is on a high-traction surface- a situation where the outside wheel would normally spin faster during a turn. Without a locking system, the power would go to the wheel with the least grip, often causing you to get stuck.
The system includes several components that work together to engage or disengage the lock based on driving conditions. Mechanical systems use physical gears to force both wheels to turn together, offering strength and durability. Electronic locking mechanisms, on the other hand, use actuators and sensors to detect slippage and activate the lock automatically—ideal for modern driving where convenience and responsiveness matter.
In many newer vehicles, especially trucks built for off-road or commercial use, manufacturers integrate both mechanical and electronic systems to enhance performance and safety. This dual approach ensures reliable locking when needed, along with the ease of control from within the cabin.
Key Components and Their Functions
| Component | Function |
|---|---|
| Gears | Transfer power to both wheels |
| Actuators | Engage/disengage the lock system |
| Sensors | Detect slippage and send signals |

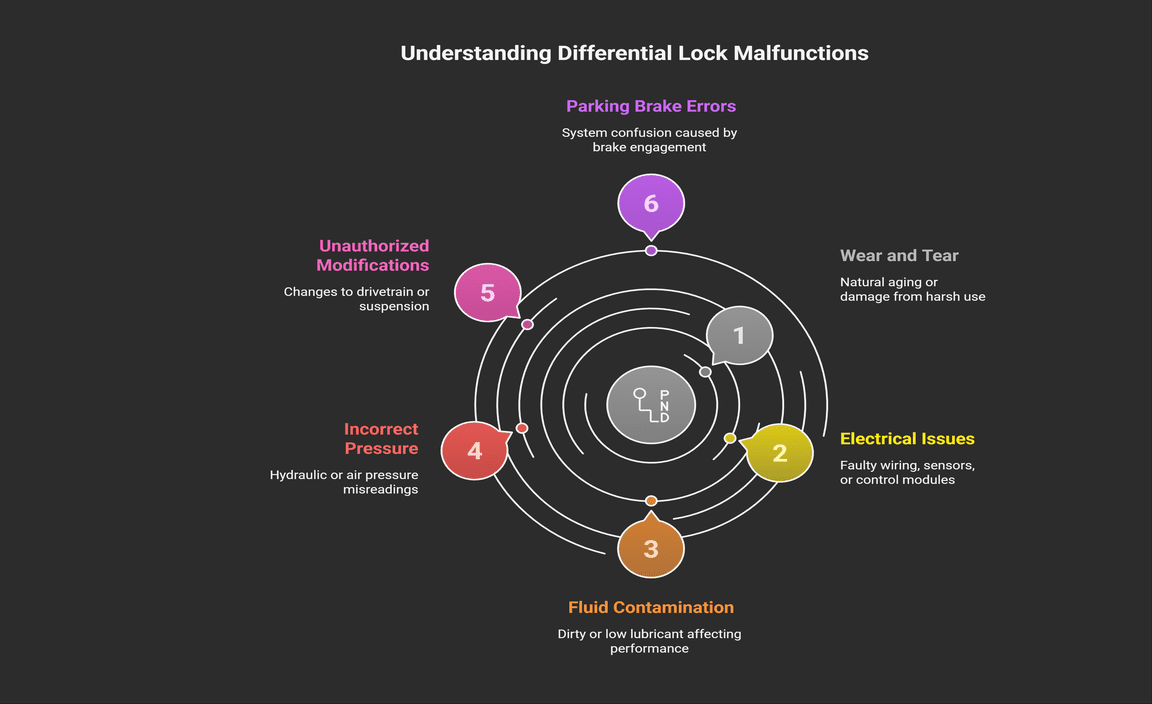

Common Causes Of Malfunction
Differential lock systems are built to handle tough driving conditions, but they aren’t immune to failure. Over time, mechanical components wear down, sensors lose accuracy, and fluid quality degrades. These issues are especially common in vehicles used for heavy-duty work or frequent off-road driving, like trucks or modified SUVs.
Even small modifications, such as tire size changes or lift kits, can disrupt system calibration and lead to malfunctions. Electrical faults are another frequent cause. The system relies on electronic actuators and control modules to manage locking and unlocking.
If a sensor misreads pressure or wheel speed, the differential lock may fail to engage properly. Contaminated or low-quality fluid can also reduce lubrication, increasing friction and heat. In some cases, a stuck parking brake can mislead the system into thinking the wheels are under uneven load, triggering errors.
Main Causes at a Glance:
- Wear and tear – Natural aging or damage from harsh use
- Electrical issues – Faulty wiring, sensors, or control modules
- Fluid contamination – Dirty or low lubricant affecting performance
- Incorrect pressure – Hydraulic or air pressure misreadings
- Unauthorized modifications – Changes to drivetrain or suspension
-
Parking brake errors – System confusion caused by brake engagement
Why Do Cars Have Differential Locks?
Cars have differential locks to help them move better on tricky roads. This lock lets wheels turn at the same speed. It’s great for rough or slippery surfaces, like mud or snow. When one wheel spins without moving the car, the lock helps by giving power to both wheels, making sure no wheel is stuck.How Can I Keep My Differential Lock System Working Well?
Regular checks are key. Check the fluid levels and get routine oil changes. Make sure to fix any leaks fast. Look at the electrical connections for damage. If a sensor says something is wrong, have it checked by a mechanic sooner rather than later. Watching and taking care of these things stops big problems.Signs And Symptoms Of A Malfunctioning Differential Lock System
A malfunctioning differential lock system often shows early warning signs that drivers shouldn’t ignore. One of the first things you might notice is a clunking or grinding noise, especially when turning corners at low speed. These sounds often come from the axle, where the lock mechanism may be struggling to engage or disengage properly.
If steering suddenly becomes stiff or uneven when driving in a straight line, the system could be stuck in a locked or partially locked position. In some cases, the differential lock may fail to engage altogether, even when conditions require more traction.
Other times, it might disengage without warning, causing uneven wheel rotation that can make the vehicle feel unstable. This can be particularly unsettling for the passenger, as the car may pull to one side or feel jerky during motion. Recognizing these signs early helps prevent more serious drivetrain damage and keeps both the driver and passengers safe on the road.
What Happens If The Differential Lock Fails?
When a differential lock fails, your vehicle may lose the ability to evenly distribute power across the wheels. This uneven power transfer can lead to uneven tire wear and reduced grip on slippery or rough surfaces. The vehicle might struggle to move forward, especially in off-road conditions or during sharp turns.
More seriously, at high speed, a failed differential lock can destabilize the vehicle. It may pull to one side or feel unbalanced, particularly when cornering or braking. Over time, this can strain the engine and transmission as they compensate for the loss of controlled traction. Ignoring this issue can also damage internal drivetrain components.
How Can Unusual Noises Indicate A Differential Lock Problem?
Strange sounds like grinding or clunking—especially while turning—are often early signs of a differential lock issue. These noises typically come from worn gears or failed internal mechanisms. If the lever that engages the lock doesn’t work smoothly or makes a resistance noise, it’s another red flag.
At high speed, these noises may become more pronounced and signal potential damage to the axle or surrounding drivetrain components. Since the engine must work harder when traction is inconsistent, these sounds serve as important warnings. Catching them early can prevent expensive repairs and ensure a smoother, safer drive.
Diagnosing Differential Lock System Issues
When your differential lock system starts acting up, it can throw your entire vehicle’s behavior off balance. You might feel stiffness when turning, hear grinding or clicking sounds, or notice unusual responses during acceleration. These signs may indicate the lock isn’t engaging or disengaging properly. Early detection is key, especially when your vehicle handles unpredictable terrain or off-road trails.
If your truck feels off even at low speed, don’t ignore it—these early hints often mean a bigger issue is brewing. Start by using your senses. Listen for noises coming from the boot area of the axle. Gently touch the differential casing after a drive to check for unusual heat—excessive warmth might signal internal friction or fluid loss.
Watch how your rear wheels behave during sharp turns. Uneven rotation, skidding, or tight handling often signals a malfunction. These steps offer crucial insight into your vehicle’s condition and help you assess the situation before it worsens.
Quick DIY Inspection Checklist
| Step | Action |
|---|---|
| Listen | Drive in slow circles. Listen for clunks or grinding. |
| Observe | Check if the rear wheels rotate evenly or feel stiff. |
| Touch | After driving, feel the different areas for abnormal heat. |
| Inspect | Look for fluid leaks near the rear axle boot or casing. |
| Ask | If unsure, consult a mechanic with diagnostic equipment. |
While DIY diagnosis gives you a solid starting point, professional diagnostics go much further. Trained technicians use scanners, hydraulic testers, and advanced software to pinpoint exact faults within the diff lock system. They don’t just guess—they get to the core of the problem with precision.
Whether the issue stems from the brake pedal, actuators, or electrical connections, the pros can test components individually. In more severe cases, professional inspection also helps prevent potential damage to the engine, drivetrain, and suspension. Don’t wait until you’re stranded. A quick shop visit today could save you from a serious situation tomorrow.
Repair And Replacement Options
Repairing a malfunctioning differential lock system can sometimes be straightforward, especially if the problem is minor. For example, a mechanic might simply need to tighten loose parts, clean dirty components, or replace a small part like a sensor or actuator. These types of repairs are generally low-cost, typically ranging from $100 to $200, depending on the issue.
However, in cases where there’s more significant damage or wear, such as a cracked housing or a failed electronic component, a complete replacement may be necessary. This can be a more expensive solution, with costs ranging from $500 to $1000 or more, depending on the make and model of the vehicle. Replacing the entire differential lock unit might involve significant labor and parts replacement, especially if your car is an off-road vehicle or a truck with a more complex system.
Before you order any parts or commit to a repair, it’s essential to consult your owner’s manual. The manual often provides useful information about common problems, maintenance schedules, and specific parts required for repairs. If you’re uncertain about whether a repair or full replacement is necessary, it’s wise to seek professional advice from a mechanic who can evaluate the condition of your system thoroughly.
Why Can A Differential Lock System Malfunction?
A front-rear differential lock system is an essential feature in off-road vehicles that improves traction, especially in challenging conditions. It works by locking the wheels on an axle together, forcing them to rotate at the same speed.
This is particularly useful when one wheel loses traction, such as in mud, snow, or on rocky terrain. With the lock engaged, the vehicle can move more efficiently and maintain grip, preventing the vehicle from getting stuck or slipping.
Several factors can lead to a malfunction in a differential lock system:
- Wear and Tear: Over time, the parts of the system can wear out due to regular use.
- Lack of Maintenance: If the system isn’t regularly checked, dirt, debris, and fluid leaks can cause it to function poorly.
-
Harsh Driving Conditions: Driving in extreme conditions, like deep mud, sand, or snow, can put extra strain on the system, causing it to malfunction.
Regular maintenance and early detection of issues can help prevent costly repairs and ensure the system continues to function as expected.
Preventive Maintenance Tips
Think of your front and rear differential lock system as a team that thrives on regular check-ups. Routine checks help keep this team at peak performance without any hiccups. Meanwhile, periodic fluid changes act like a spa day for your vehicle, refreshing the system’s core. It’s crucial to watch out for early warning signs—squeaks, drips, or strange noises might mean trouble. Heed these hints, and your ride will stay smooth and steady.| Maintenance Task | Recommended Frequency |
|---|---|
| Fluid Changes | Every 30,000-60,000 miles |
| System Check-Up | Every 6 months |

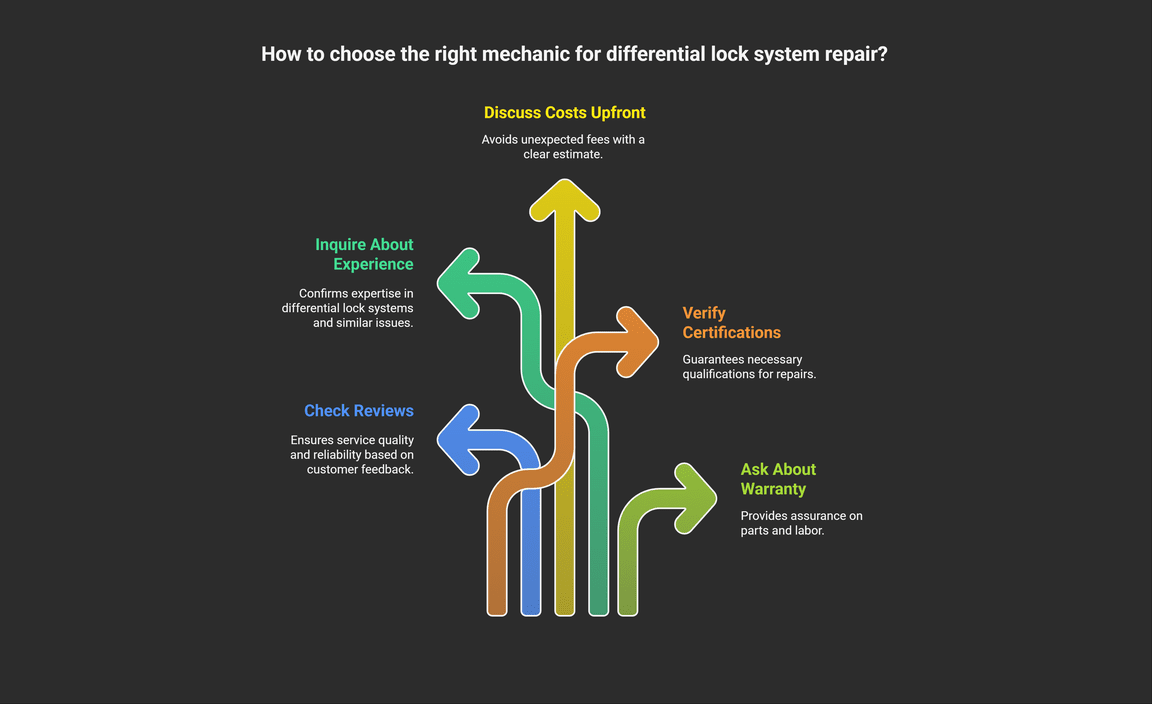

Choosing The Right Professional Help
When your car starts showing signs of trouble, especially with complex systems like the differential lock system, finding a skilled and trustworthy mechanic is crucial. You want a professional who not only has experience but also specializes in the specific issues you’re facing.
A reliable mechanic will have a combination of good reviews, certifications, and the ability to diagnose and fix issues efficiently. Before you hire anyone, take the time to ask the right questions to ensure they have the expertise and tools to handle your differential lock system problem.
Here are key points to consider when selecting a mechanic:
- Check reviews: Look for customer feedback on the mechanic’s service quality, reliability, and pricing.
- Inquire about experience: Ask if they have worked on differential lock systems and similar mechanical issues.
- Discuss costs upfront: Get a clear estimate of repair costs to avoid unexpected fees.
- Verify certifications: Ensure they have the necessary certifications to perform repairs on your vehicle type.
-
Ask about warranty: Inquire whether they offer warranties on parts and labor.
By asking the right questions, you can ensure that your mechanic has the necessary skills and experience to get the job done right the first time.
Advancements In Differential Lock Technology
In recent years, differential lock technology has made significant leaps forward. Innovations like electronic controls ensure greater reliability, even in tough conditions. Imagine a vehicle that adjusts its locks while you enjoy your snack—pretty nifty, right? As we roll into the future, systems will be smarter, using AI to anticipate and react to road changes. These upgrades promise smoother rides, less skin lost from knuckles in frustration, and vehicles that could qualify as robotics majors. Here’s a quick look at some of these advancements:| Innovation | Benefit |
|---|---|
| Electronic controls | Enhanced reliability and automatic adjustments |
| AI integration | AI predicts road changes for smoother rides |
